Medit T710 Scanner With Exocad

Original price was: $19,500.00.Current price is: $12,500.00.

A first feature of the new Medit T710 is already revealed: A 4-camera system, each camera with a 5-megapixel resolution. Ensuring that there are no blind spots when scanning!

In stock

SKU: medit t710 Categories: , Brand:Medit

Description

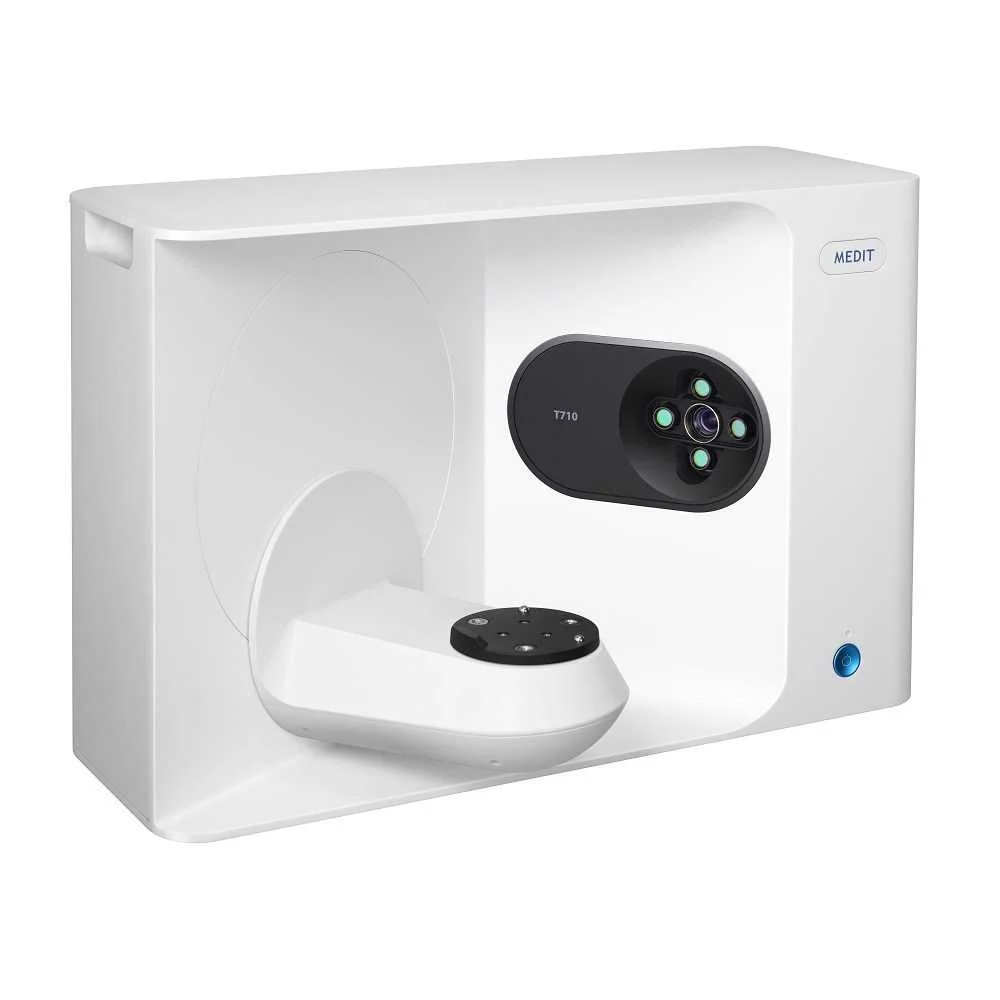

Medit T710 desktop scanner is equipped with a fast scan engine and highly efficient software algorithm which works in tandem to produce a full-arch scan in just 8 seconds. The advanced, high-speed positioning system of the new T-Series is designed for optimal performance for your laboratory, speeding up your workflow and increasing productivity.

The T710, with its new four 5.0MP-resolution cameras system and blue-light scanning technology, ensures your models and impressions are fully scanned, eliminating all blind spots.

Medit T710 can be used to scan all indications, including implant cases, impressions, and replica dentures. The model also features a flexible multi-die function and fits any articulator available in the market, allowing for maximum compatibility.

Features

Why the Medit T-Series? It’s a simple choice.

Integration with Medit i500 intraoral scanner

Need additional scan data? With the Medit Scan for Labs software, you can now add scans using our Medit i500 intraoral scanner!

Integration with various CAD software

Scan data from our Medit T-Series can be used in a wide range of software, giving you the freedom to work with your preferred design program for a variety of dental applications.

Flexible multi-die scanning

Make your work more efficient by using the flexible multi-die to scan a full-arch or partials with multiple dies simultaneously.

Includes:

  • Auto-elevation of scan platform
  • Color texture
  • Flexible scanning included
  • Articulator scanning included
  • Replica denture included
  • Orthodontic scanning included
  • Impression scanning included

Includes Exocad:

  • Crown and Bridge
  • Implant Module

Medit Scan for Labs

Introducing our new lab scan software, Medit Scan for Labs.

Optimize your digital workflow and get even more productive with all our new innovative features.

Advanced Precise Color Texture

Capture vivid color texture scans, including hand-marked margins or handwritten notes.

Auto-alignment with Base/Prep

With the auto-alignment feature on Medit Scan for Labs, you no longer need to align your Prep data with the Base data because the software will do it for you! This feature also works for the Prep data when scanning flexible multi-dies.

No Downtime (Processing Done in Background)

There’s no need to wait for a case to be processed before proceeding to the next. Processing is done in the background for maximum efficiency, allowing you to scan cases consecutively without a break.

​Customized Scan Sequence

Enjoy the flexibility of choosing your own scan sequence with Medit Scan for Labs. Simply drag and drop the scan stages and re-order the sequence to suit your working style and needs!

​HD Mode for Selected Stages
You can select specific parts to scan in high resolution, allowing you to scan in HD whenever necessary.
Replica Dentures

Replicate and archive existing dentures or create a surgical or radiographic guide with fast, accurate, and high-quality scans.

​Partial Dentures

The partial denture framework requires the interproximal undercut as a retention force foundation. Use the ‘interproximal scan’ in the ‘Orthodontic’ scan strategy for your partial denture framework scans.

Advanced Scanbody Alignment
With the ‘Medit Certified’ Library, the Implant Scanbody Alignment feature uses an algorithm which ensures high position accuracy, as well as the accuracy of each re-alignment. The ‘Advanced Scan body Alignment’ feature is especially useful for highly sophisticated prostheses like implant bar scanning cases.
​Bottom Side of the Wax-Up

Experience optimized functionality with wax-up bottom scanning, which allows the scanning of both the extrados and the intrados of a wax-up, for perfect copying of the pontic area and a much more accurate design.

​Interproximal Area Scan for Orthodontics

Capture important interproximal areas with the Medit T-Series and Medit Scan for Labs software.

Post & Core

The Post & Core scan feature helps you to capture the deepest part of the core, by giving you the option of combining your model data with impression scan data.

​Alignment to Virtual Mounting Plate
An exclusive function only available with Medit scanners, this feature enables you to link articulators such as KaVo, Artex, SAM, MARK330, and BIOART A7+, with virtual articulators, without needing any special jigs. Simply scan the mandible mounting plate and align it to the default position of the articulator mounting plate. You can then use the virtual articulator integration function in CAD with highly accurate positioning.
Double-sided Impression and Plaster Stump

Medit Scan for Labs combines data from your stone die with data from the impression scan to provide you with accurate margin information. This eases the challenges of checking the margins of preparation teeth on impressions. When you scan individual stone dies of a prepared tooth, the Medit Scan for Labs software aligns and integrates the plaster die data and the double-sided impression data for increased convenience.

Full Arch Tray

The Impression Module for the Medit T710 allows you to perform automatic double-sided impression scanning, eliminating the need to manually reverse the image. The result is an easy and accurate double-sided impression scan and bite alignment.

Various Strategies for Implant Case Scanning

The Medit Scan for Labs software captures both the base and scan bodies at the same time, so you don’t need to scan twice. With the ‘Add Scanbody’ function, you can also scan the same scan body at several implant locations, reducing the need for multiple scan bodies.

Medit Link

Linking Everything

Medit Link is a truly open platform that offers you an integrated and flexible all-in-one workflow for dental clinics and labs. Manage all your digital data and 3D scans in one place, communicate seamlessly with partners and patients to ensure high-quality results, and complete your order comfortably and securely within one system. With easy add-ons for additional dental software of your choice, Medit Link is your link to the world of digital dentistry.

T710 Specifications

Accuracy                                                4μm
Full Arch Scan                                       8 seconds
Full Arch Impression Scan Speed       45 seconds
Colour Texture
Auto-elevation
Let the scanner decide the scanning height for your object with our auto-elevation feature.
Wider Scan Area
Scan more objects at the same time thanks to the wider scan area of our T-Series tabletop scanners!
No Blind Spots
The 4 cameras in the T710 are positioned in a way to ensure that there are no blind spots in your scan data. It only takes one scan to get the full data!

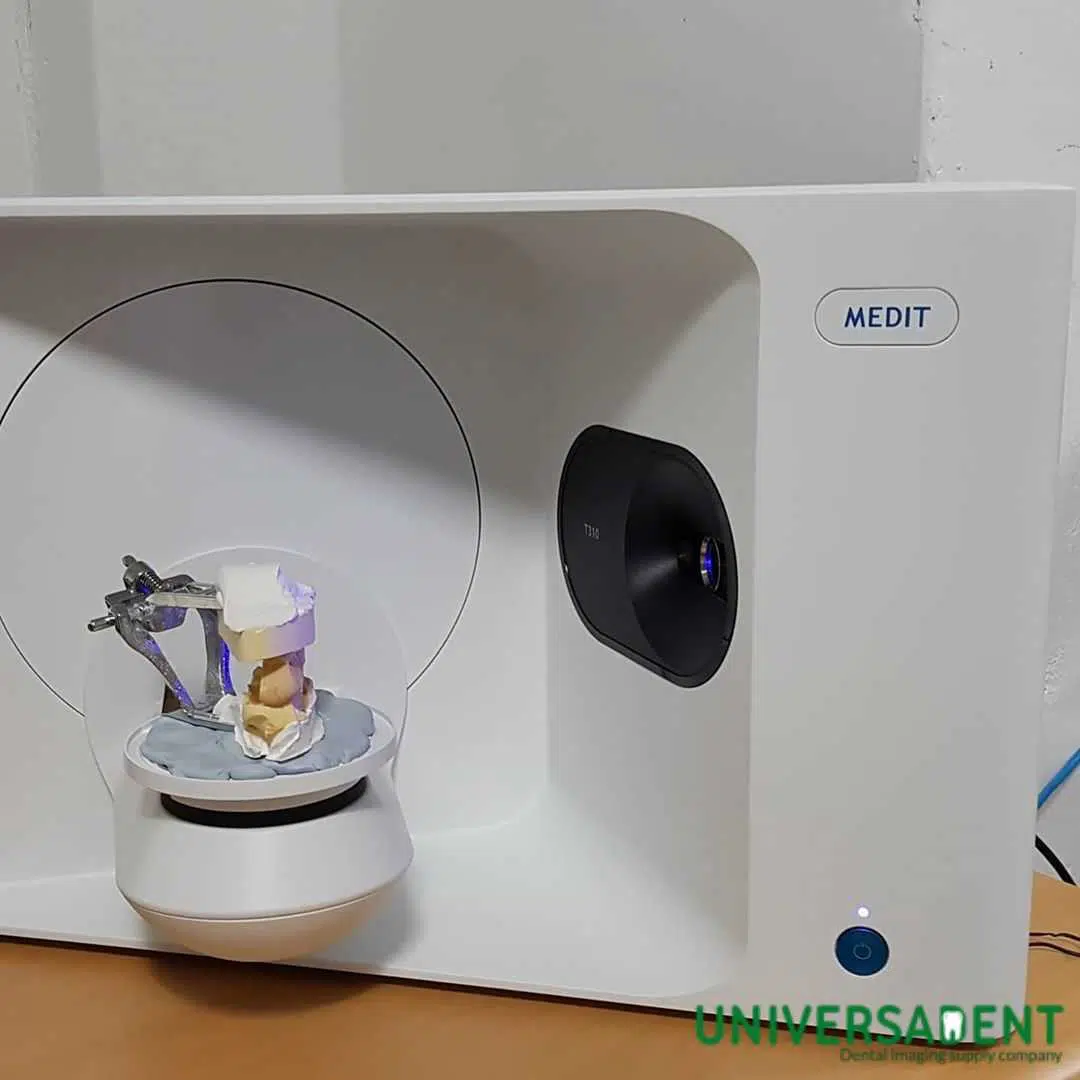

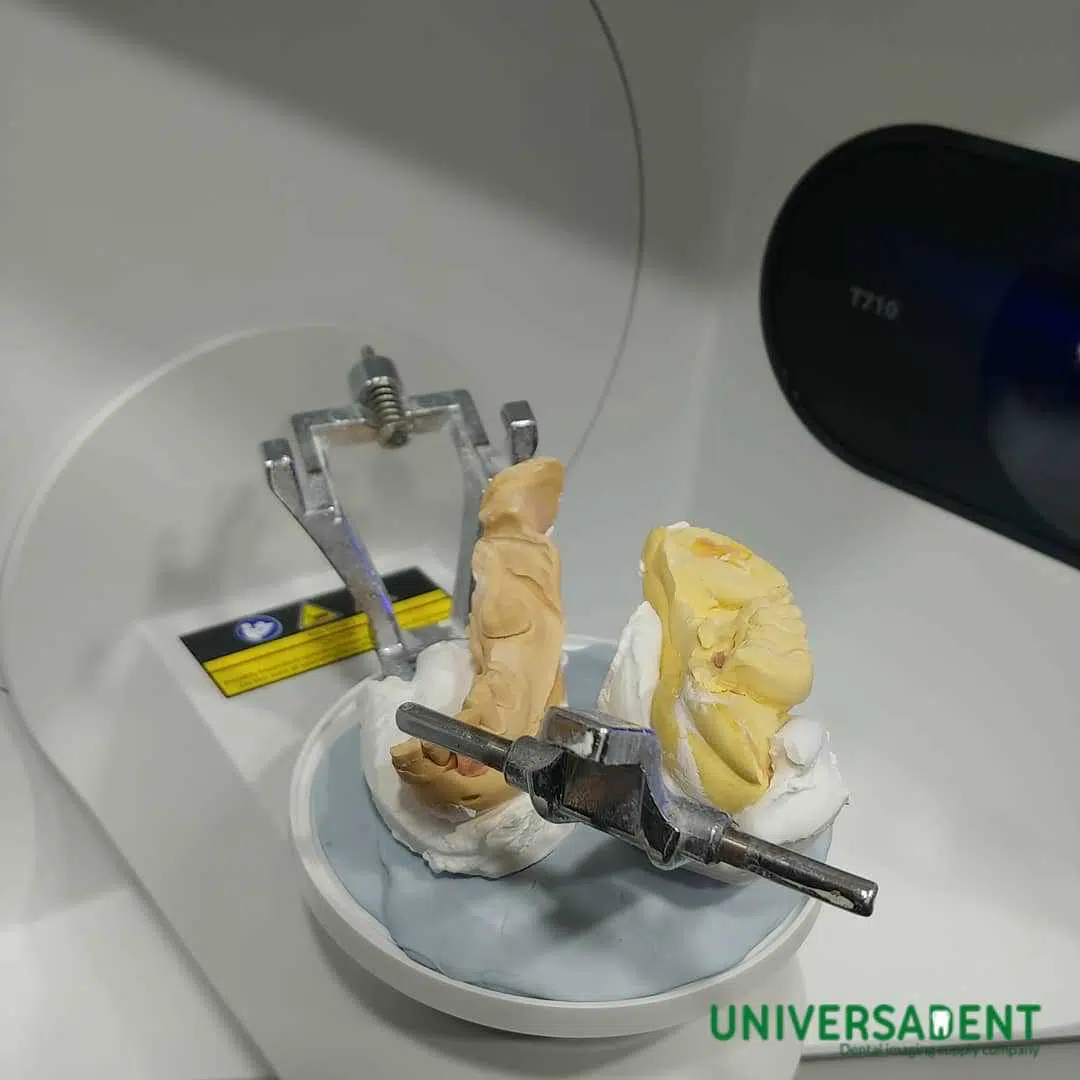

Full-size articulator scanning
To reproduce the exact occlusion orientation, nothing beats scanning the occlusion in the articulator itself. We’ve designed our T-Series to accommodate any articulator available in the market, comfortably.
Replica Denture                                    Included
Orthodontic Scanning                          Included
Impression Scanning                           Included
