Description

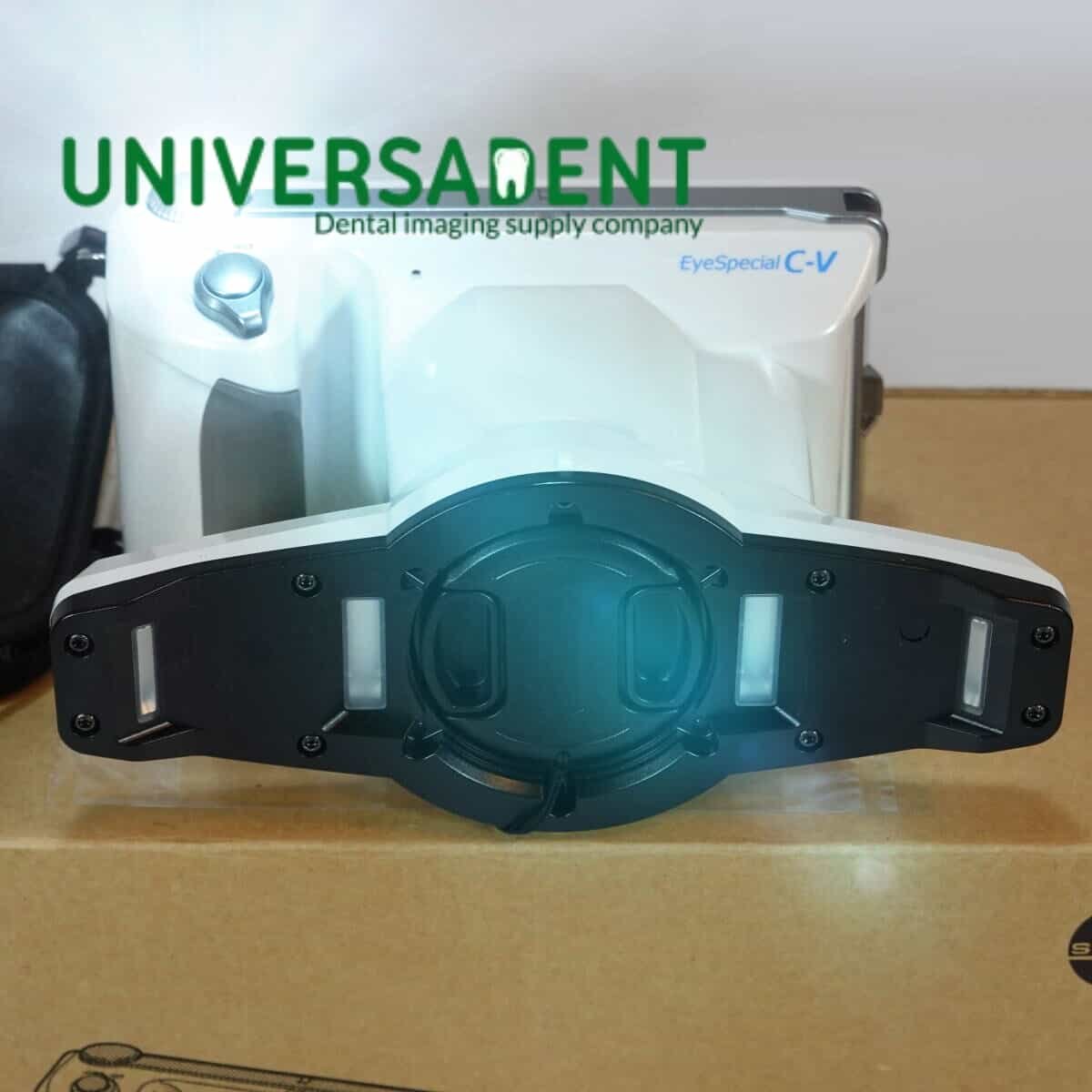

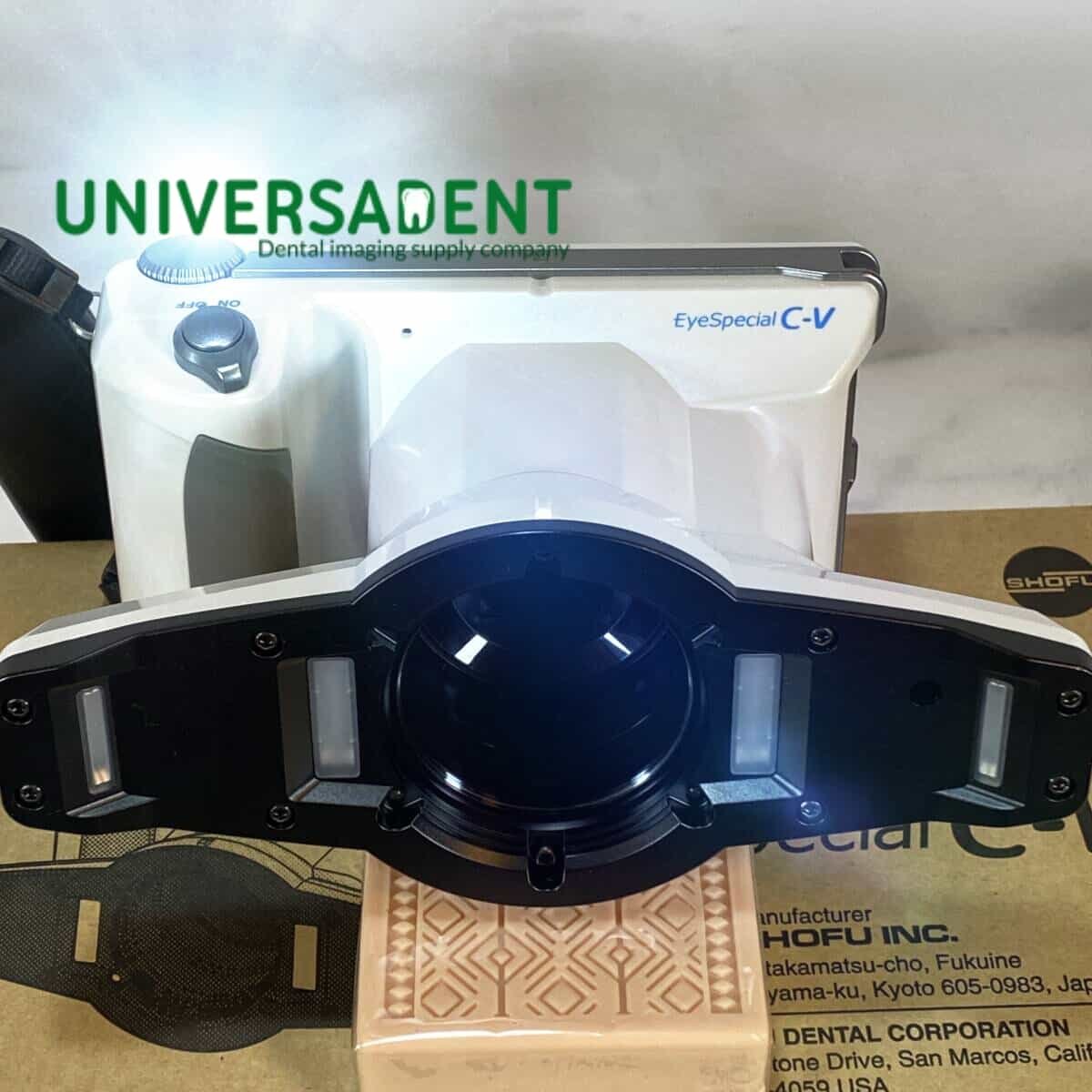

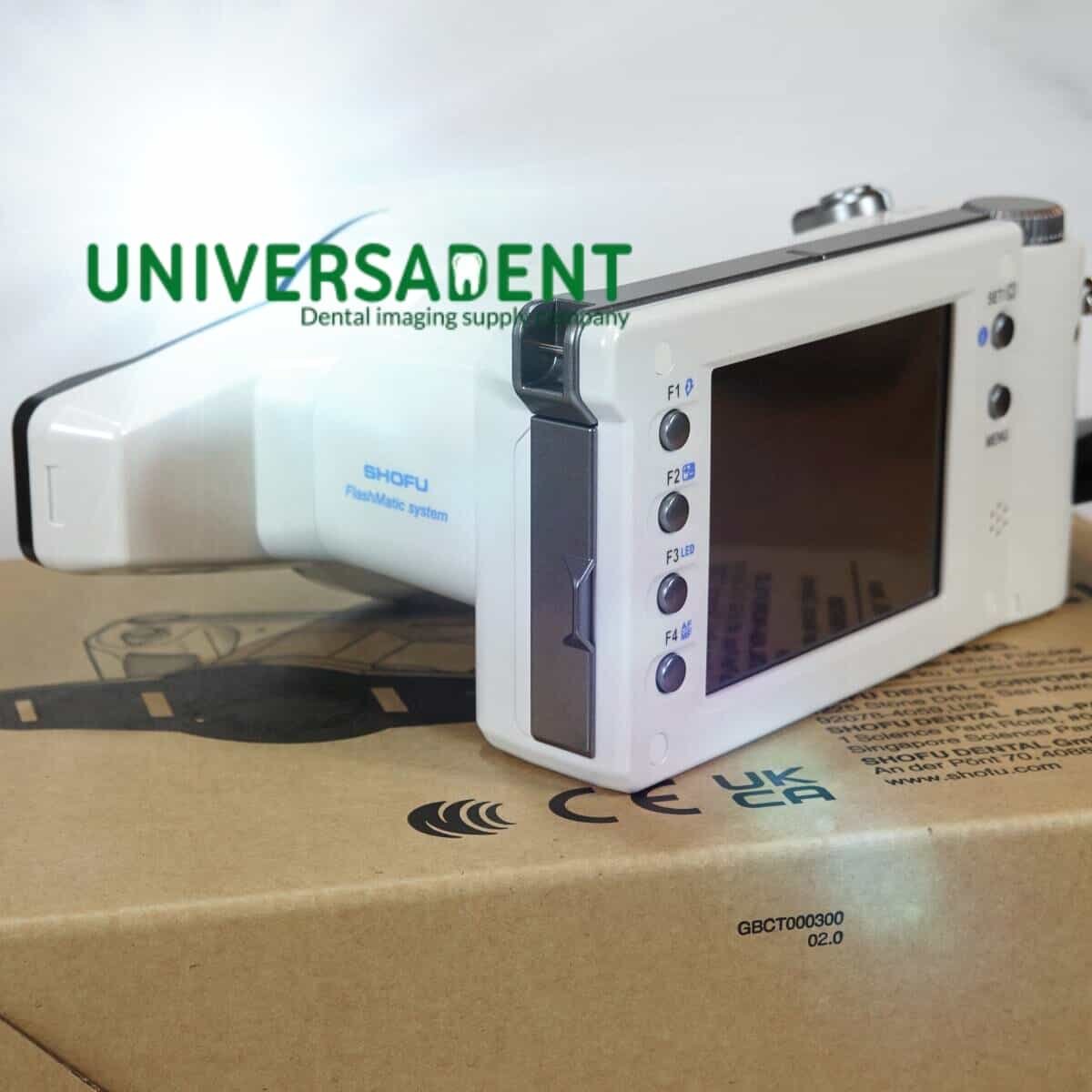

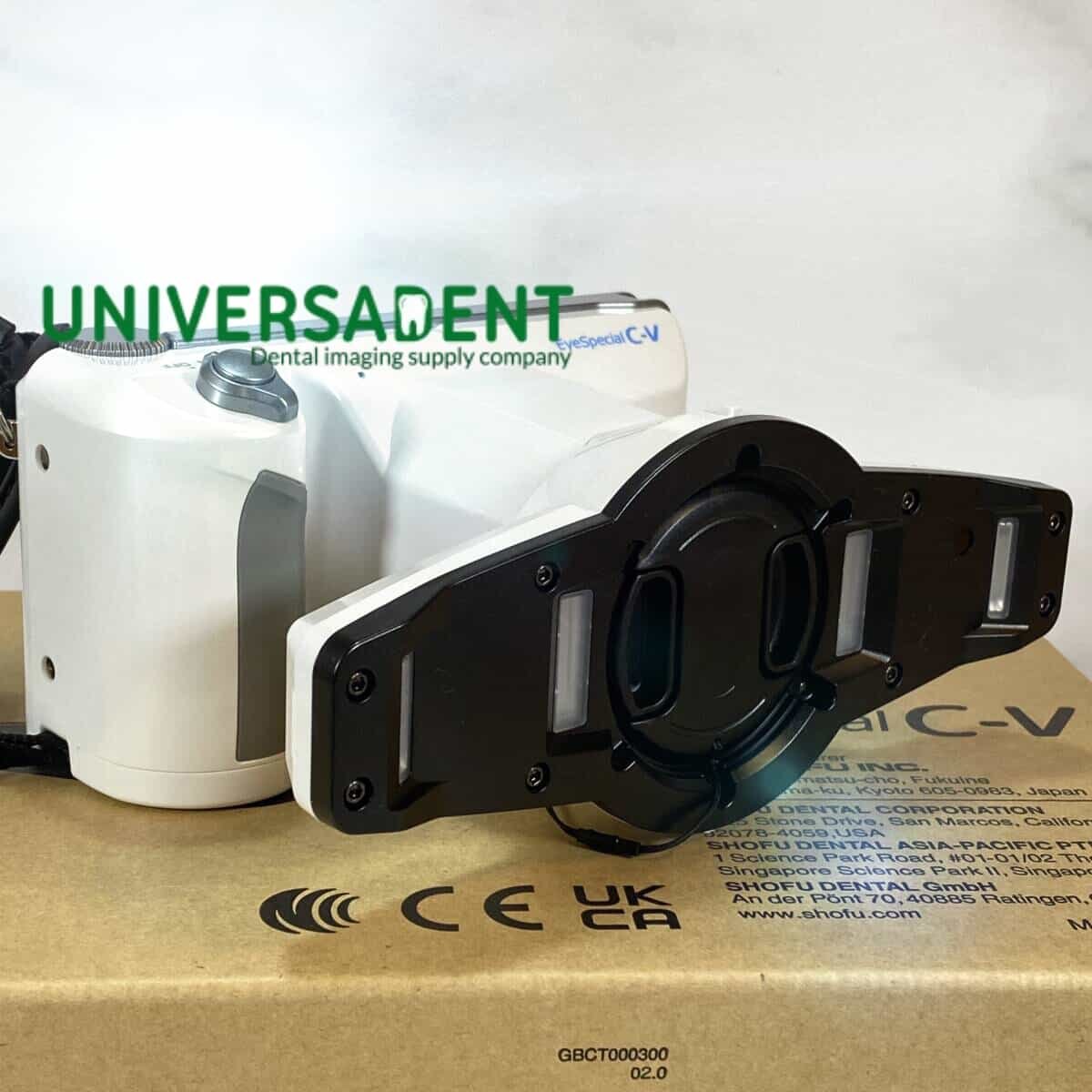

The EyeSpecial C-V is a camera produced by SHOFU. It comes with various components and optional accessories to enhance the user experience.
The camera comes with a lens cap, hand strap, close-up lens, SHOFU gray card, and an SDHC memory card. It works with AA batteries, including alkaline and rechargeable nickel metal hydride types. It also needs an SD, SDHC, or SDXC card for recording. You can connect the camera to other devices using an HDMI cable (HDMI, Type A / Micro HDMI, Type D).

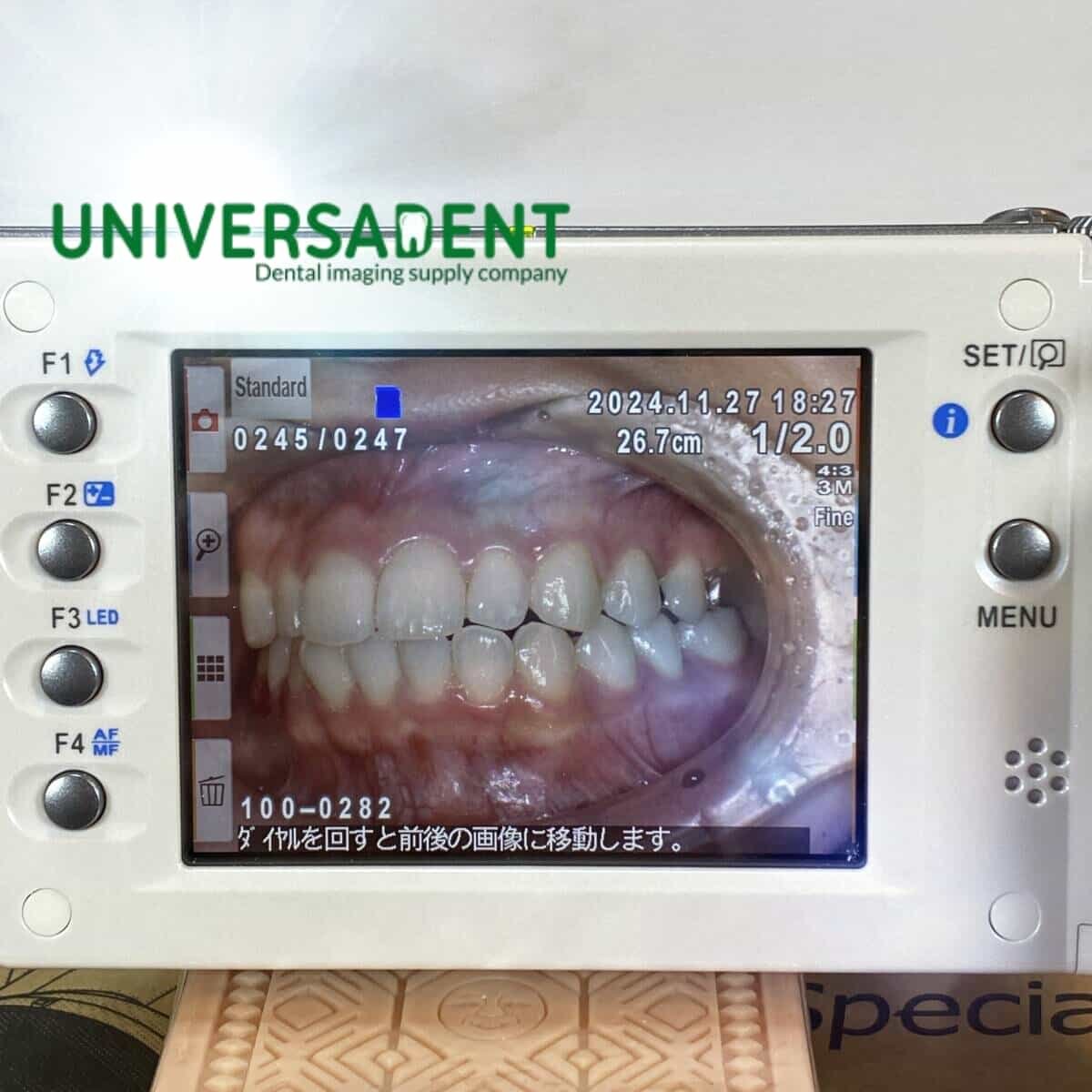

The EyeSpecial C-V Digital Camera from Shofu has built-in photographic expertise. It relieves users of their worries about ring flash, lateral flash, aperture or depth of field. This camera helps you take clear and useful patient images. Every photo will be good: high in contrast, sharp, and true to color.
The Shofu EyeSpecial dental camera has smart features. Popular in dental practices and labs for making professional photo documents. Easy to use, it consistently takes good images. You can also let your assistants use it without needing long training.
The new fifth generation of this lightweight and compact camera has a Wi-Fi function. This lets you save data directly to your computer. The developers expanded the video feature; now it permanently adjusts the sharpness of the recording with continuous autofocus. Just concentrate on the subject and shutter – the camera will handle everything else.
Features of EyeSpecial C-V Wi-Fi Dental Camera:
- Compact and lightweight dental camera with Wi-Fi function.
- Nine shooting modes and video function.
- Optional polarizing filter to reduce reflections.
- Water and chemical resistant, easy to disinfect.
- Includes macro lens, lens cap, hand strap, 16GB SDHC memory card, and gray card.
Highlights

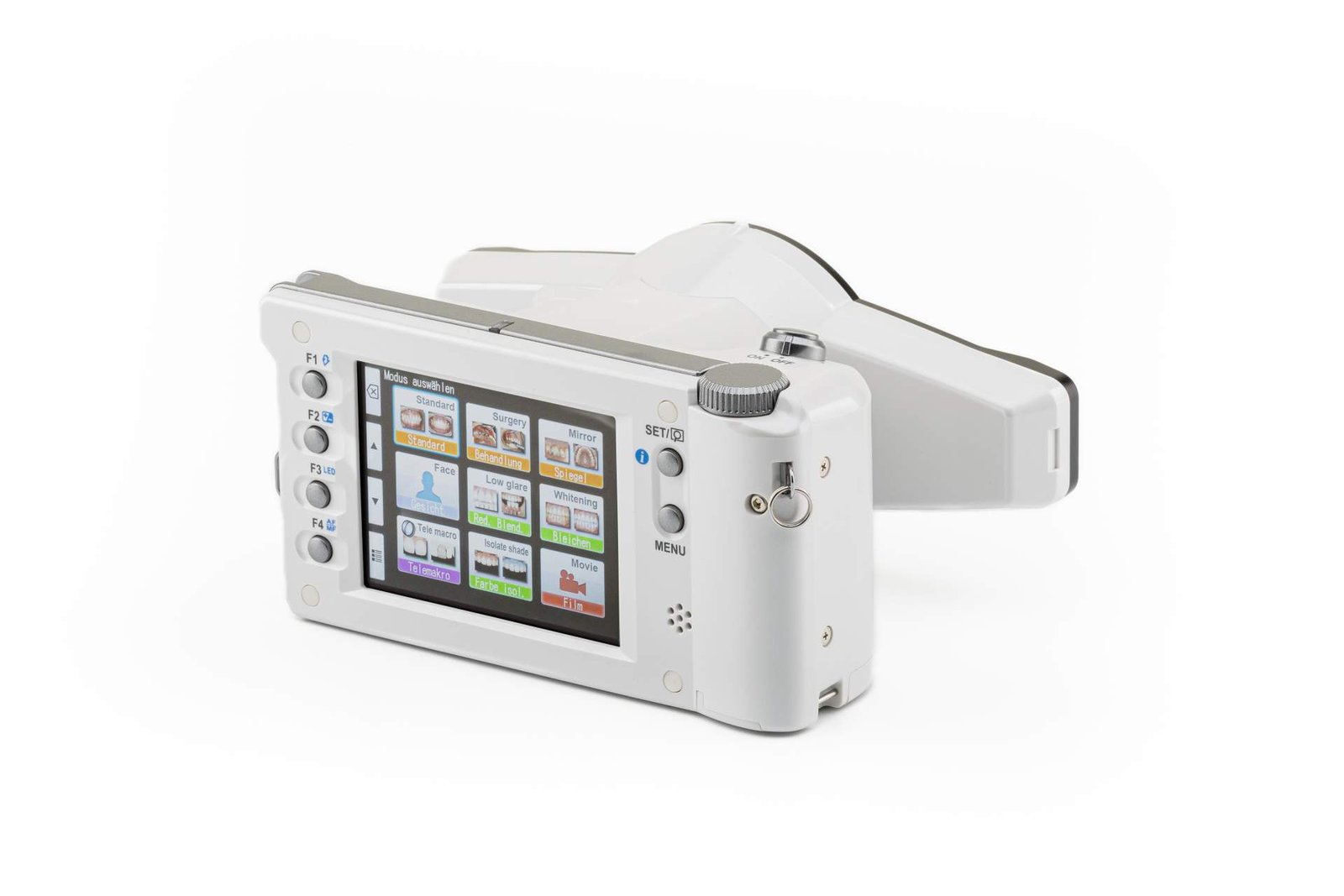

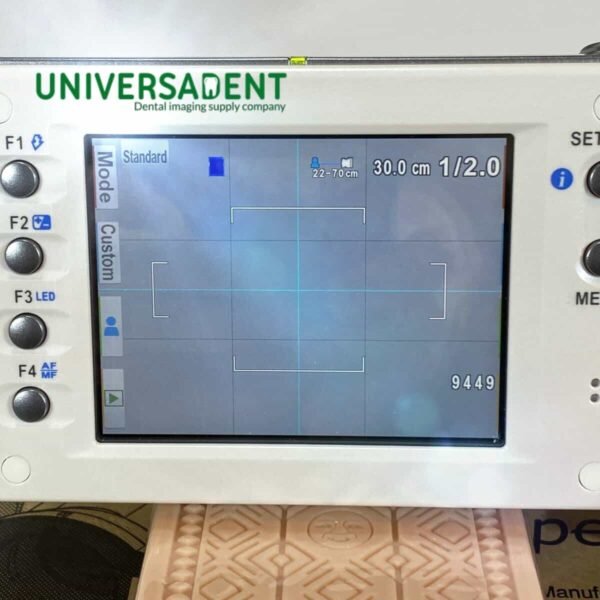

- Fast, intuitive menu navigation
- Nine shooting modes
- Video feature
- Automatic flash control
- Optional attachable cross polarizer
- One-handed operation, even with medical gloves
- Disinfectability in accordance with current hygiene guidelines
- Wi-Fi function for image transfer
- QR code features
This lightweight, high-performance camera can be held with one hand. This leaves the other hand free for a cheek retractor or a mirror. It does not require any “heavyweight” accessories, like external flashes or interchangeable lenses. Equipped with everything you need, the EyeSpecial C-V allows you to take informative and professional dental photographs.
Glare-free to show more of the tooth, with the cross-polarizer
Categories
- Digital Dentistry
- Laboratory Equipment and Supplies
- Minimally Invasive Dentistry
- Handpieces & Rotary Instruments
- Restoratives, Bonding Agents, Finishing & Polishing Products
Specifications
Sensor:
- Type: Primary colour filter, CMOS sensor.
- Size: 1/2.3 inch.
- Total pixels: Approx. 12 million (4,163 x 3,062).
- Effective pixels: Approx. 12 million (4,000 x 3,000).
- Sensitivity: ISO 100 to 3,200.
Lens:
- Focal length (35 mm equivalent): 50 – 217 mm (total 8 focal lengths).
- Maximum aperture: Wide: 4.6 – 5.3 / Tele: 6.5 – 7.5.
- Zooming method: Optical and digital zoom.
- Digital zoom: 10 steps from x1.05 to x2.
- Optical filter: IR cut filter.
Autofocus:
- Method: Contrast autofocus.
- AF area: Center-weighted / spot.
- Focus mode: Photo: Single shot autofocus and manual focus by adjusting the distance.
- Movie: Continuous autofocus.
- AF assist light: 4 white LED lights.
Automatic Exposure (AE):
- Method: TTL (through the lens) metering / FlashMatic (patented) light control.
- AE area: Center-weighted / spot / standard.
- Shutter release: Electronic and mechanical.
- Shutter speed: 1/15 to 1/1,000 sec, automatic change.
Image storage:
- Storage media: SD/SDHC/ SDXC card (max. 512 GB).
- File format: JPEG/MOV (with patien information file (.MIF)).
- SD card record format: DCF (standard / date).
- Photo size: (JPG) Aspect ratio 4:3 – 12M / 8M / 5M / 3M / 2M / VGA. Aspect ratio 3:2 – 10.6M / 8M / 4M / 3M.
- Movie size (MOV): HD (1,280×720), 59.94 fps.
- Image quality: Extra fine / fine / standard.
- Information imprinting: Date and time + shooting conditions + patient information.
Camera:
- Power supply: 4 alkaline AA batteries / 4 rechargeable nickel metal hydride batteries (NiMH).
- External power supply: None.
- Power save function: Off / 1 / 2 / 3 / 5 min.
- Dimensions: W 176 x H 80 x D 115 mm (without accessories).
- Weight: Approx. 540 g (without accessories).
- Water resistance: Complying with IPX4.
- Chemical resistance: Ethanol disinfection.
- WLAN specification: Standards compliance: IEEE802.11 b/g/n/a/ac. Security: WEP, TKIP, AES.
Software & Firmware
The receiving software WLSDMonitor is required to automatically transfer the images saved on the SD card to your computer using the Wi-Fi function of the EyeSpecial CV camera. It is only available in English.
WLSDMonitor Software: www.shofu.co.jp/wlsdmonitor/en/
The SHOFU SureFile software is required to quickly sort and file all images taken by the EyeSpecial CV according to the patient information entered prior to capturing images. The software is compatible with the models C-II, C-III, C-IV and CV.
SHOFU SureFile software: www.shofu.co.jp/surefile/indexe.html
An update to the latest Firmware may be required
EyeSpecial C-Ⅴ Firmware (Ver.01.03.01) : www.shofu.co.jp/eyespecialc5/firmware_en.html

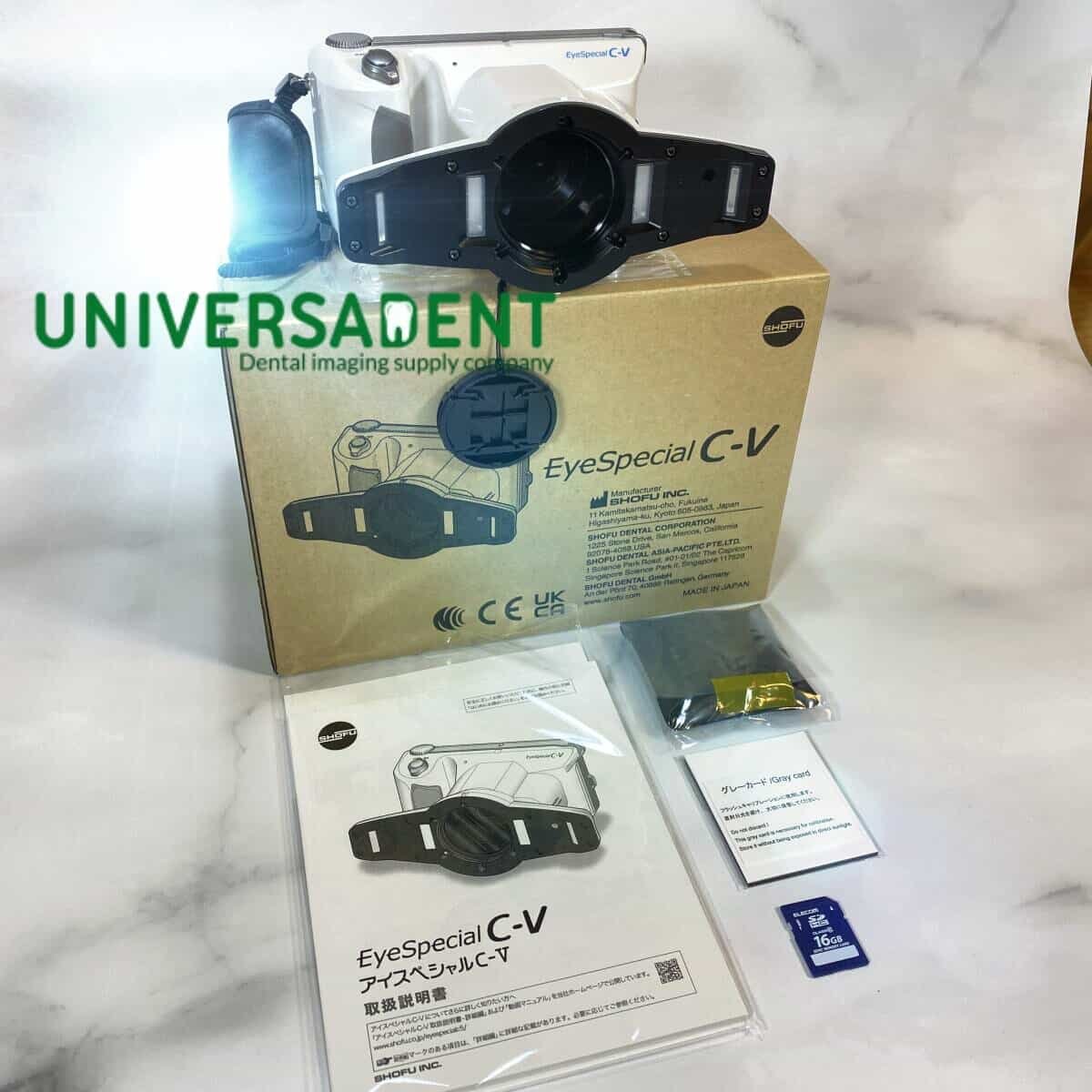

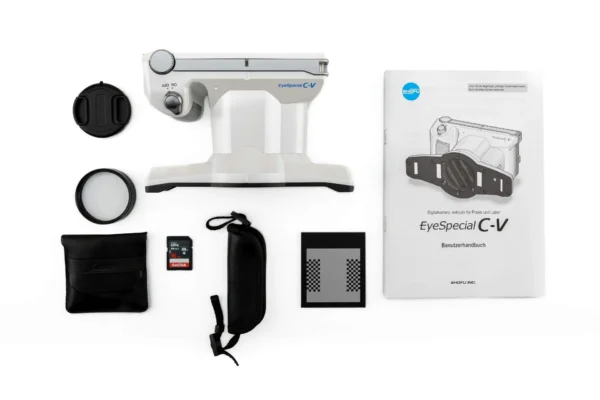

Includes
- Camera EyeSpecial C-V
- Close-up lens (49 mm) from Kenko
- Lens cap
- Hand strap

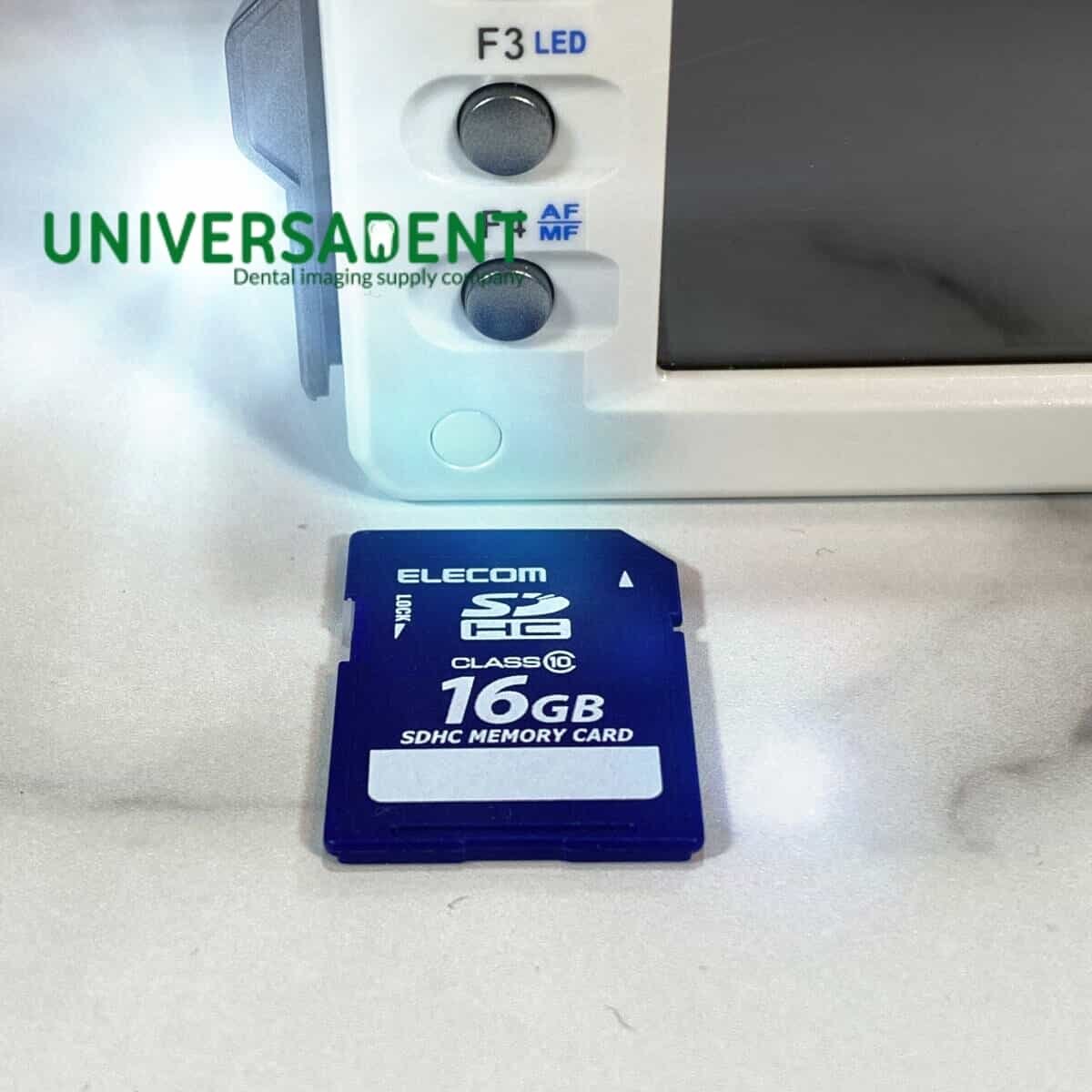

- 16 GB SDHC memory card
- SHOFU gray card
- User manual
- Quick reference
- Safety instructions
- Shofu EyeSpecial C-V case
Reference
- Manufacturer Information
- Brochure
