Description

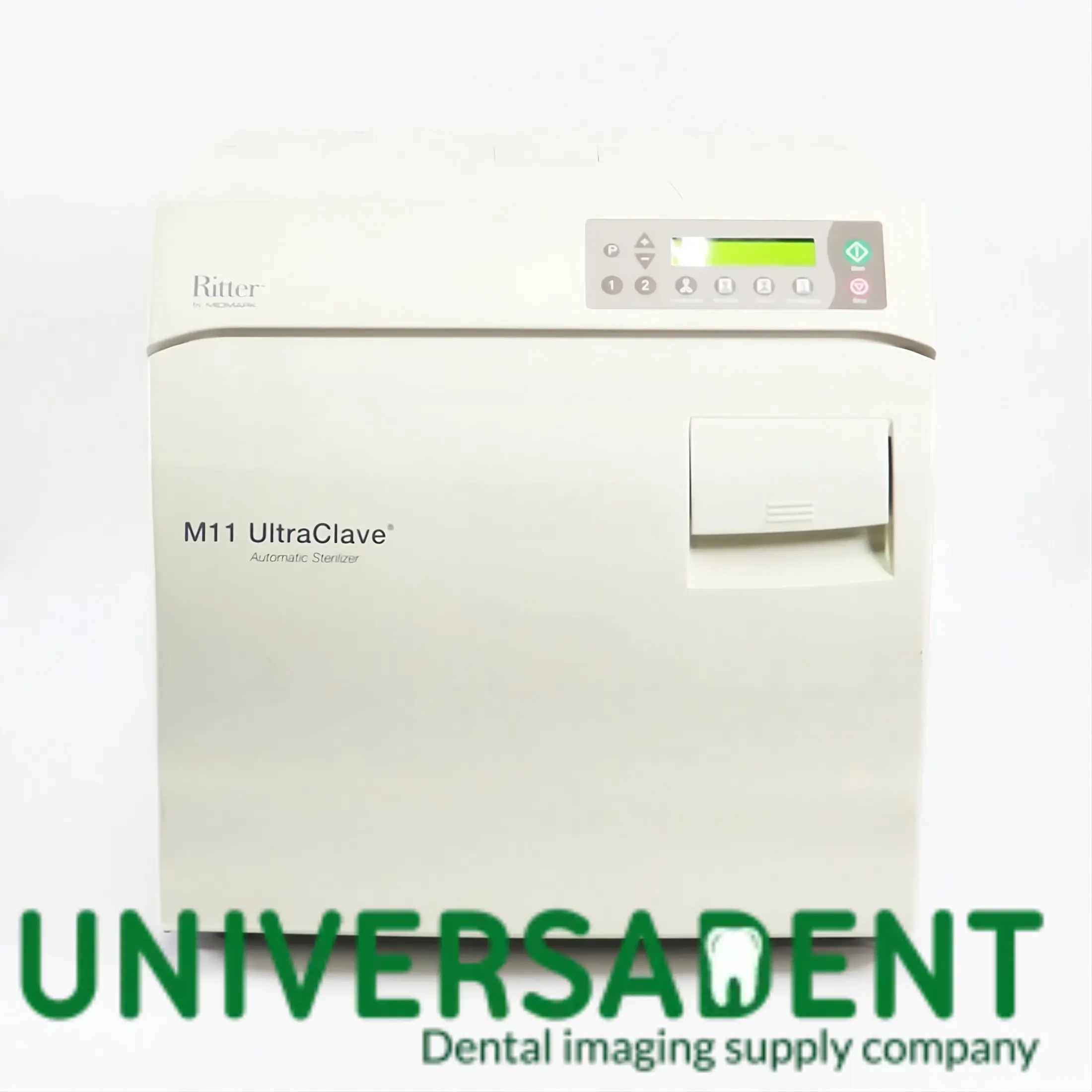

The Midmark Ritter M11 is both easy to use and proven reliable over time. You load it, set it, and forget it. Select your cycle, and you set the time.
Press “Start” and the Ritter M11 fills with the correct amount of water. Once the sterilization process finishes, the door opens automatically and quietly. This helps to release the steam and allows your instruments to dry quickly. It’s really convenient!
Engineers designed the Midmark M11 Steam Sterilizer to be safe, reliable, and user-friendly. The M11 has one of the largest chambers of any tabletop autoclave. It can help you keep more sterile instruments. It does this by reducing the time and effort needed for sterilization.
The Midmark Ritter M11 is both easy to use and proven reliable over time. You load it… set it… and forget it. Select your cycle and the time is set for you. Press “Start” and the Ritter M11 fills with the correct amount of water.
Once the sterilization process is done, the door opens automatically and quietly. This helps to release the steam and allows your instruments to dry quickly. It’s really convenient!
The Midmark Ritter M11 features easy front access for filling and draining, as well as controls that are easy to understand.

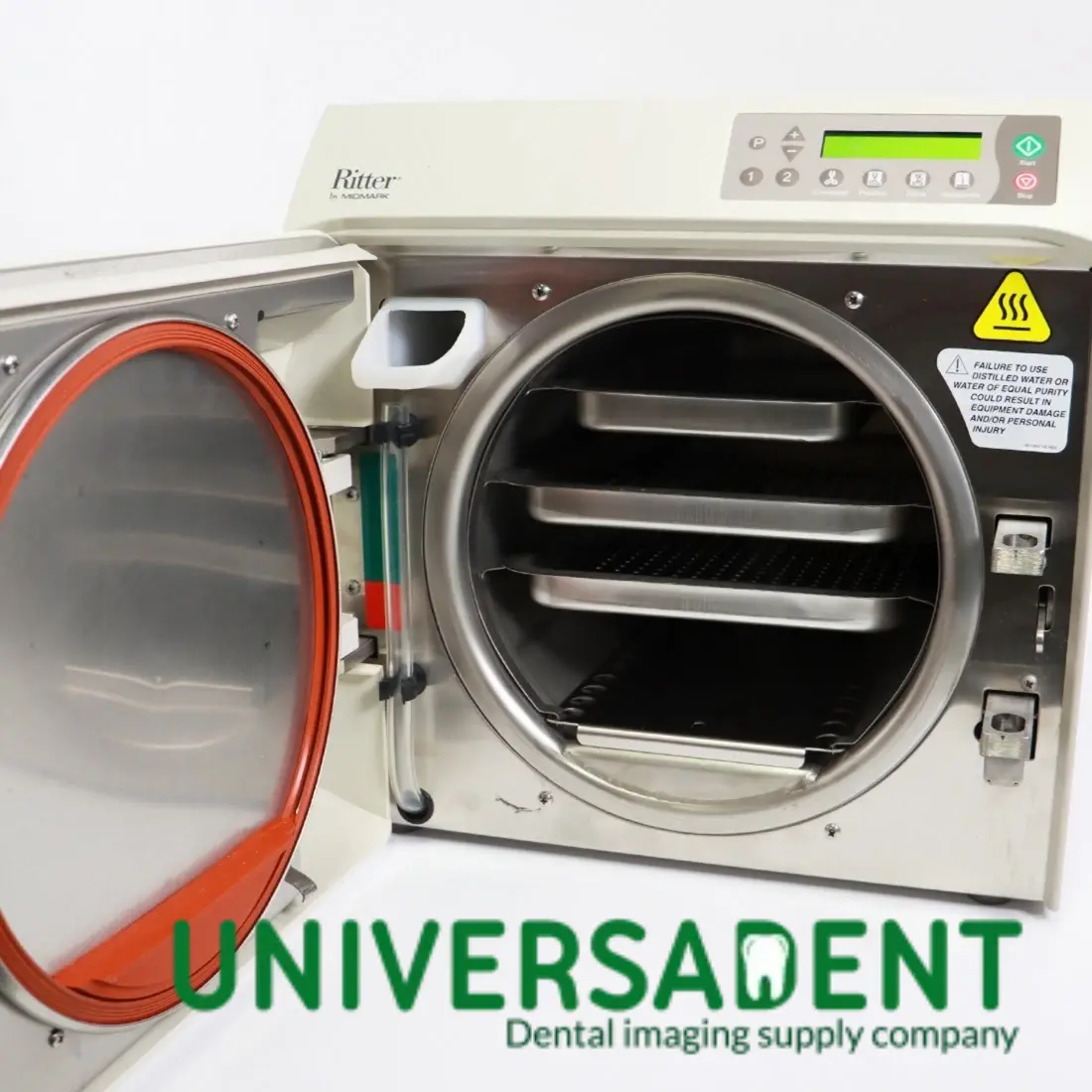

Its special 11″ by 18″ chamber makes it the best at sterilizing among standard countertop sterilizers. This feature is great for larger packs and instruments.
An optional printer accessory is available for the Midmark Ritter M11. It provides records of the cycle, cycle time, temperature, and pressure. The Midmark Ritter M11 has easy-to-reach front fill and drain tubes. You do not need to move it to maintain or drain the water.
Features
Pulse-air Removal Technology
The M11’s Steam-Flush Pressure-Pulse Air Removal System works very well. It can pass air removal tests for more complex vacuum steam autoclaves. This ensures good steam penetration for tough loads. Plus, less complexity means better reliability and a cost effective solution for your sterilization needs.
Convenience at a Glance
The LCD display indicates cycle selected, cycle temperature and exposure time. When the cycle enters sterilization mode, the system displays the temperature, pressure, and the remaining cycle time. Remaining cycle time is also displayed in the dry mode. The system does not display temperature and pressure during dry mode.
No More Wet Instruments
Once the sterilization is done, the autoclave door opens automatically. This helps to release steam and dry your instruments. You’ll always have dry, sterile instruments.
Safety Features
If the door is not fully closed or the water level is low, the LCD display will show a message. In either case, sterilization will not continue until you’ve attended to the unit.
Ease of Draining & Filling
For ease of draining and filling, the M11’s reservoir fill port and drain tube are in the front of the unit, not on top or in back.
Optional Printer Accessory
The M11 printer accessory provides a permanent record of cycle times, temperatures and pressures during a cycle.
Self Program Controls
Programmable controls allow for creation of different cycle parameters for special sterilization needs. Programmable buttons allow you to change the following: Exposure Time (3 to 90 minutes), Temperature (230 to 275°F), Dry Time (0 to 60 minutes), or Vent (slow or fast). The #1 and #2 buttons allow you to store the change if desired.
Pre-Programed Controls
Four pre-programmed sterilization cycle controls: Unwrapped (132°C or 270°F for 3 minutes), Pouches (132°C or 270°F for 5 minutes), Packs (121°C or 250°F for 30 minutes), Handpieces (unwrapped and pouched) (132°C or 270°F for 6 minutes).

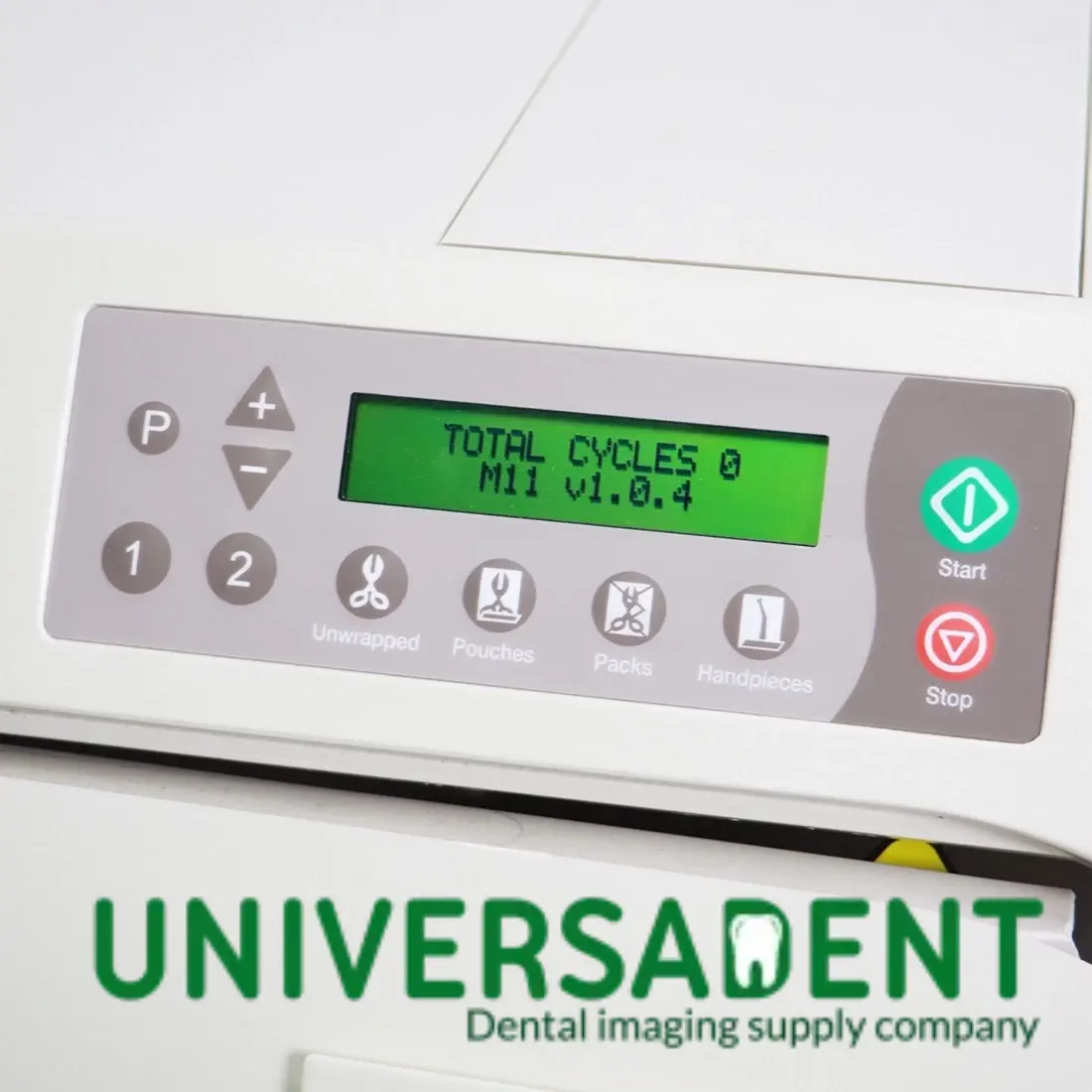

LCD Display
Indicates cycle selected, temperature and exposure time. During the cycle, the display shows messages describing status of cycle. When the cycle enters sterilization mode, the system displays the remaining time, temperature, and pressure.
Specifications
- Overall Length w/Plug: 22.8″ | 57.9 cm
- Overall Width: 17.8″ | 45.2 cm
- Overall Height w/ Printer: 17.8″ | 45.2 cm
- Countertop Area: 17.8″ x 20.7″ | 45.2 x 52.6 cm
- Pouch Rack: 2 pouch racks
- Chamber:
- 11″ diameter (28 cm)
- 18″ depth (46 cm)
- 6.5 gal. usable volume (24.6 liters)
- Trays:
- Two large – 9″ W x 15″ L x 1 1/8″ D | 22.9 cm x 38 cm x 2.9 cm
- Two small – 6 5/8″ W x 15″ L x 1 1/8″ D | 14.3 cm x 38 cm x 2.9 cm
- Unit Weight: 99 lbs. | 44.9 kg
- Shipping Weight: 131 lbs. | 59.4 kg
- Water Reservoir Capacity: 1.4 gal. | 5.3 liters

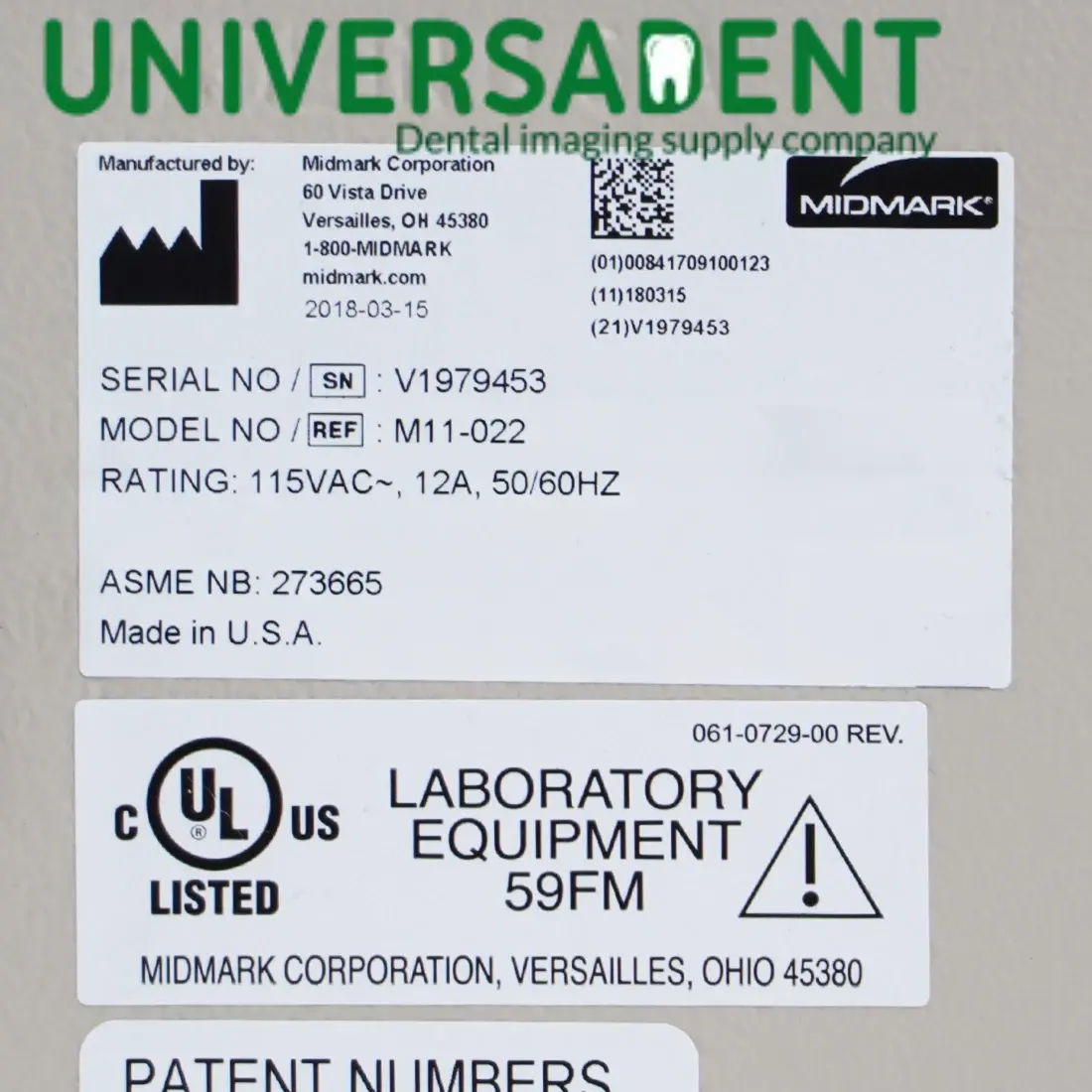

- Electrical Requirements:
- 115 VAC, 50/60 Hz, 15 AMPS Single Phase
- 115 VAC has 1425-watt tubular immersion heater
- UL61010A-1, UL61010-2-041
- CAN/CSA C22.2 No. 1010
- CAN/CSA C22.2 No. 1010.2-041-96
- 220V capability
Warranty: 1 year parts and labor
Installation Requirements
For optimal performance, install the M11 on a level, water-resistant surface such as laminate, stainless steel, or stone. Allow a minimum of 2 inches (5.08 cm) on the sides and rear, and 5 inches (12.7 cm) above the unit for easy access to fill the reservoir and change the printer paper roll.
Safety and Compliance Standards
The Midmark M11 meets a wide range of safety and compliance standards, including:
- UL listed to US and Canada standards
- ASME Boiler and Pressure Vessel Code compliance
- IEC 60601-1-2 Edition 4.0 2014-02
- CISPR II:2009, A1:2010 Class A, Group 1
- ANSI/AAMI ST55:2010(R)2014
Invest in Reliable Sterilization
The Midmark M11® Steam Sterilizer is a robust, reliable, and easy-to-use sterilization solution designed to meet the high standards of modern medical and dental practices. Its large capacity, efficient cycles, and safety features make it an invaluable asset for ensuring the sterility of your instruments.
FREQUENTLY ASKED QUESTIONS
1. Does the Midmark M11 steam sterilizer come with any additional accessories?
Yes. The Midmark M11 steam sterilizer comes with several useful accessories.
These include a data logger that records essential information, such as time, date, pressure, and temperature. There is also a printer that provides a printed record of sterilization data. Additionally, the manufacturer includes a hand tool to make loading and unloading the sterilizer safer and easier.
2. Where should I place this sterilizer in my practice?
Place the Midmark M11 steam sterilizer on a flat, water-resistant surface. Good options include laminate, stainless steel, or stone. Set 2 inches on the sides and back, and 5 inches above the unit. This space is needed to fill the reservoir and change the thermal printer paper roll.
3. Where are Midmark steam sterilizers designed and manufactured?
Engineers design, manufacture, and support all Midmark sterilizer units in the U.S.
